JOSEPHINE

LENGTH

36.00 M (118.1 ft)

BEAM

8.00 M (26.2 ft)

DRAFT

2.05 M (6.7 ft)

DISPLACEMENT

190 TONS

ENGINE

2x Caterpillar C18

SPEED

17 Knots

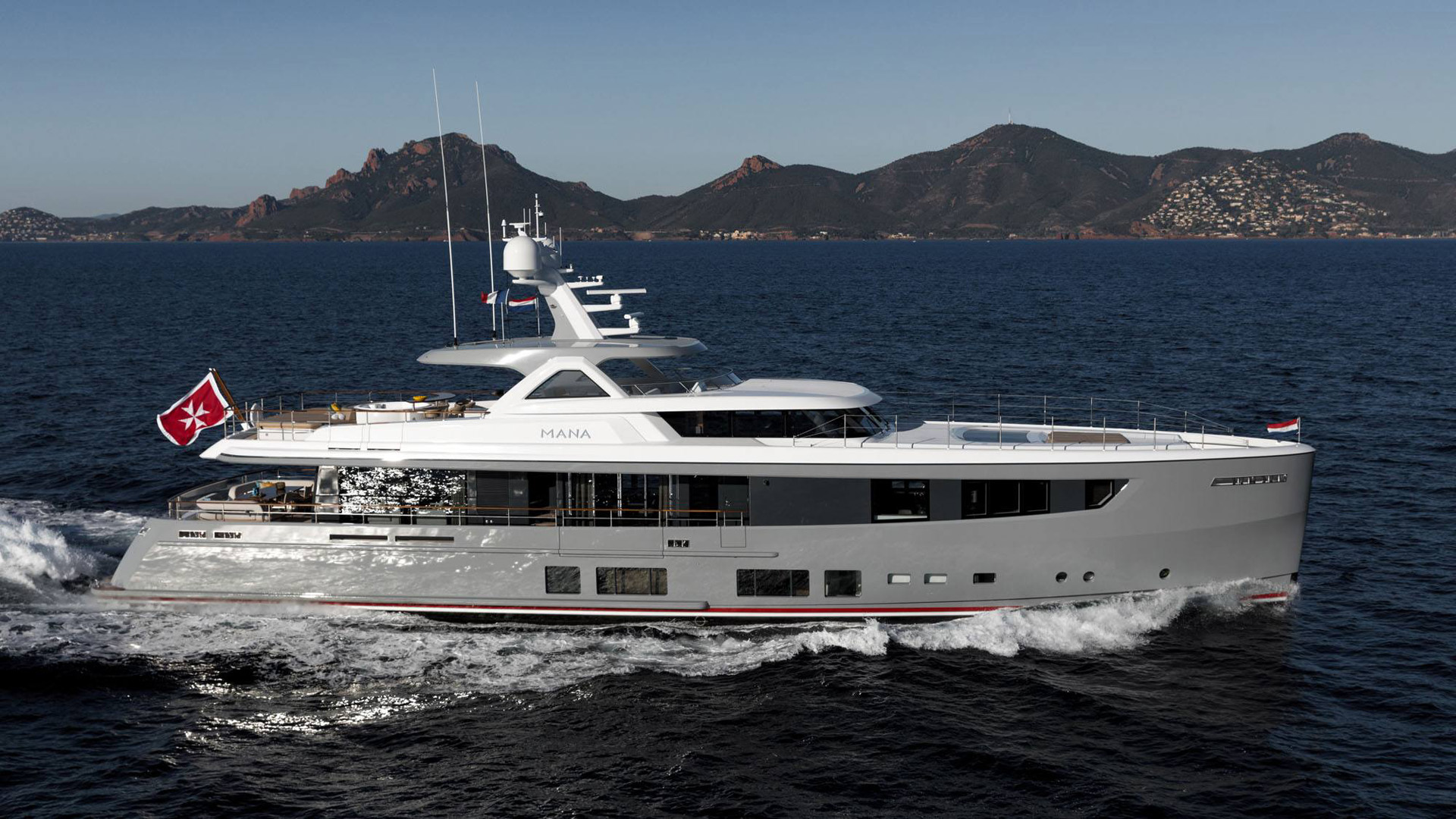

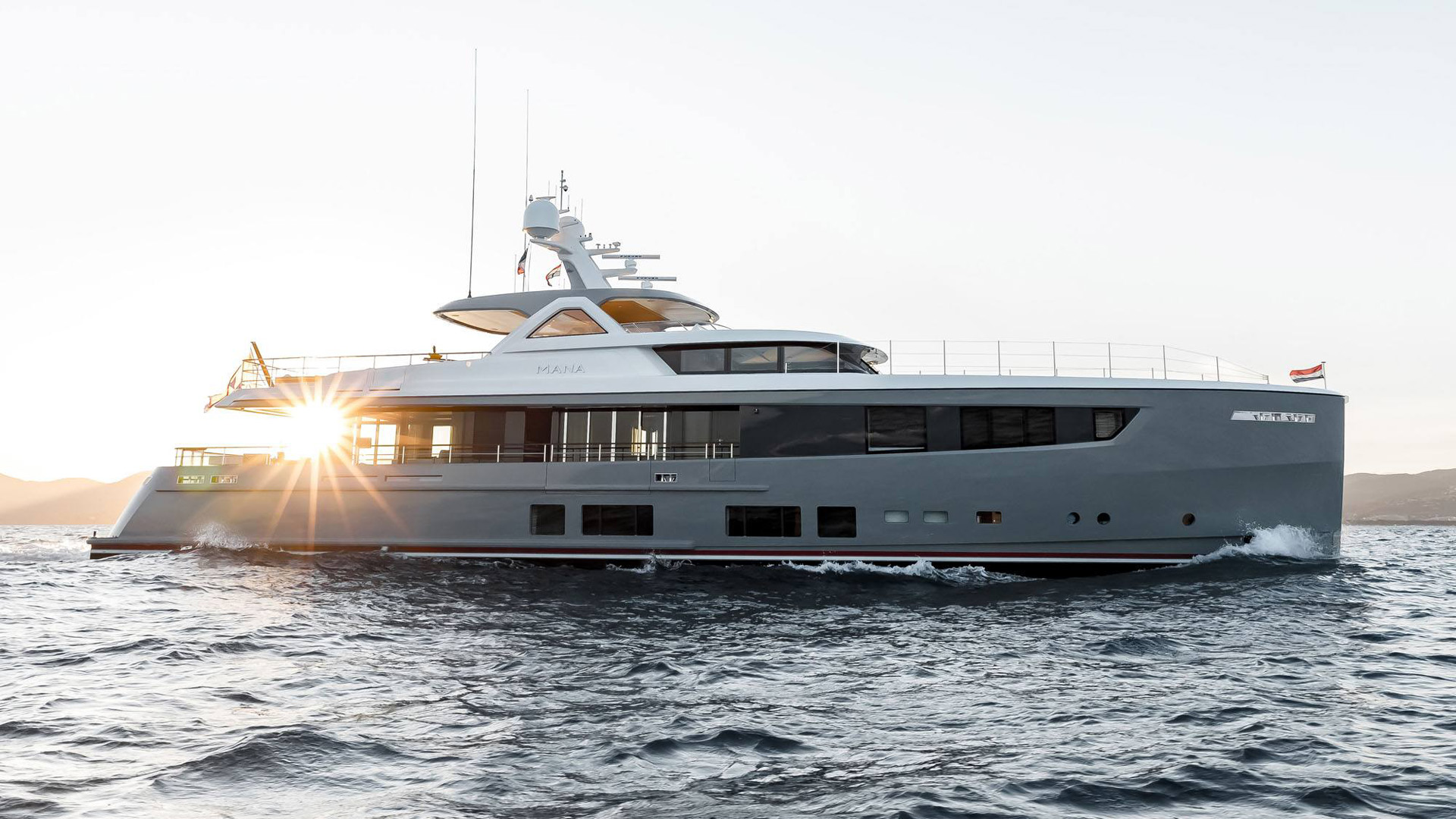

MULDER THIRTYSIX

GENERAL

Year: 2020

Launch name: MANA I

Hull material: Aluminium hull and superstructure

Hull shape: Fast Displacement Hull Form (FDHF)

Displacement: 190 TONS @ half load

Gross tonnage: 298 GT @ half load

Cruising speed: 15 KNOTS

Top speed: 17 KNOTS @ half load

Naval architect: Van Oossanen Naval Architects

Exterior design: Claydon Reeves Design Studio

Interior design: Hollander Yacht Design

Flag: Malta MCA, LY3

Classification:

ABS ✠ A1, Commercial Yachting Service, Ⓔ, ✠ AMS (Unrestricted Navigation)

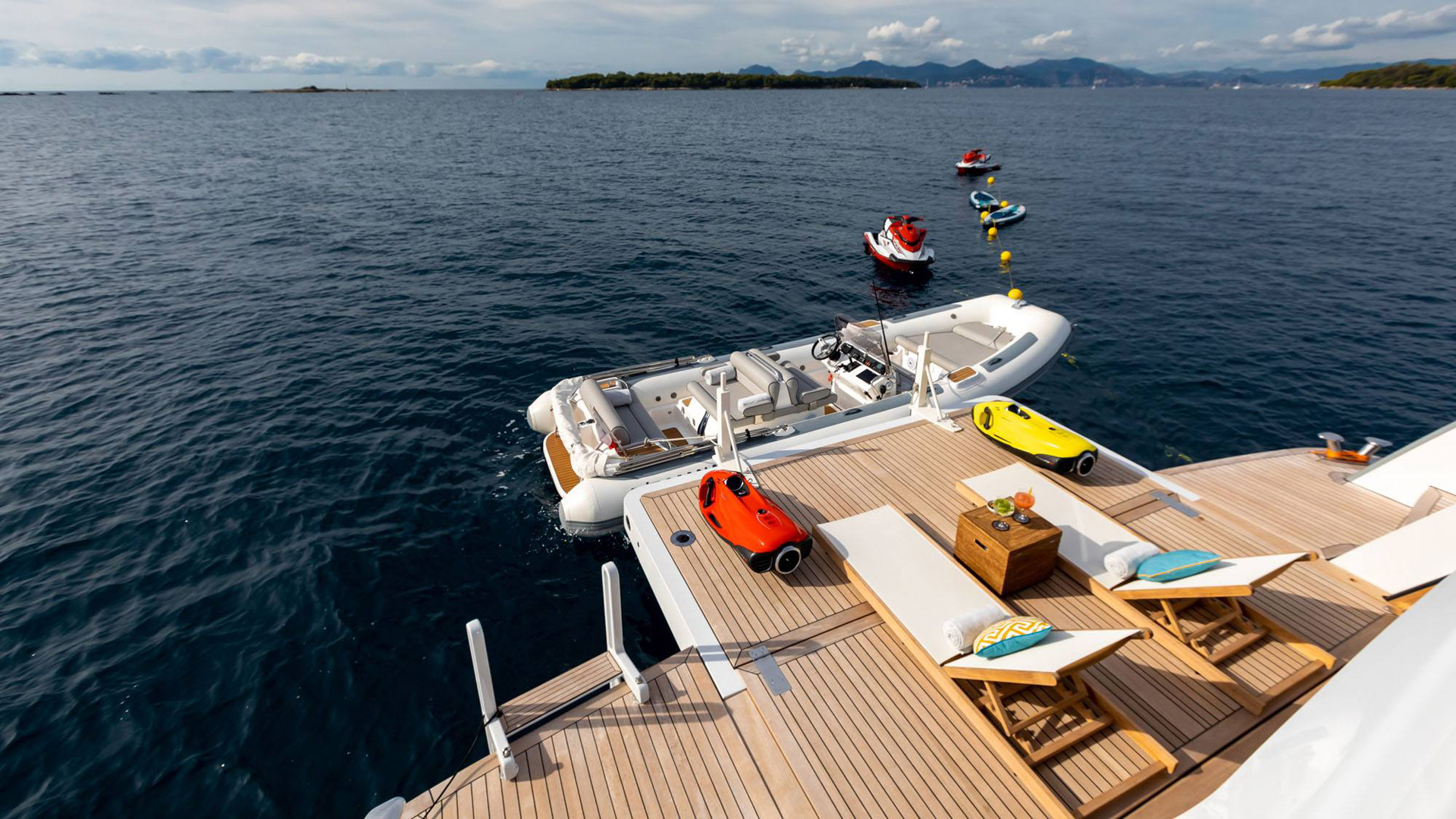

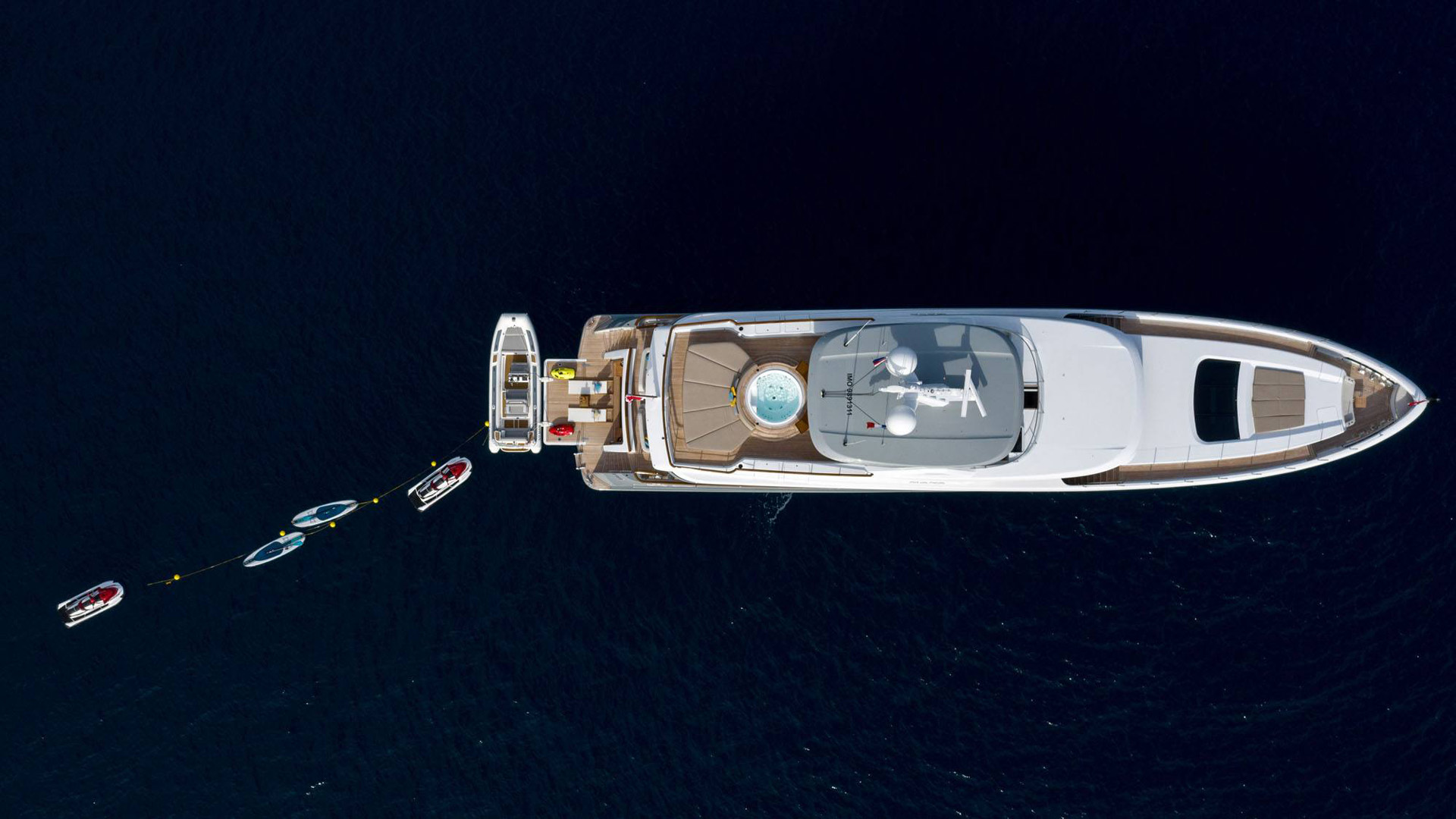

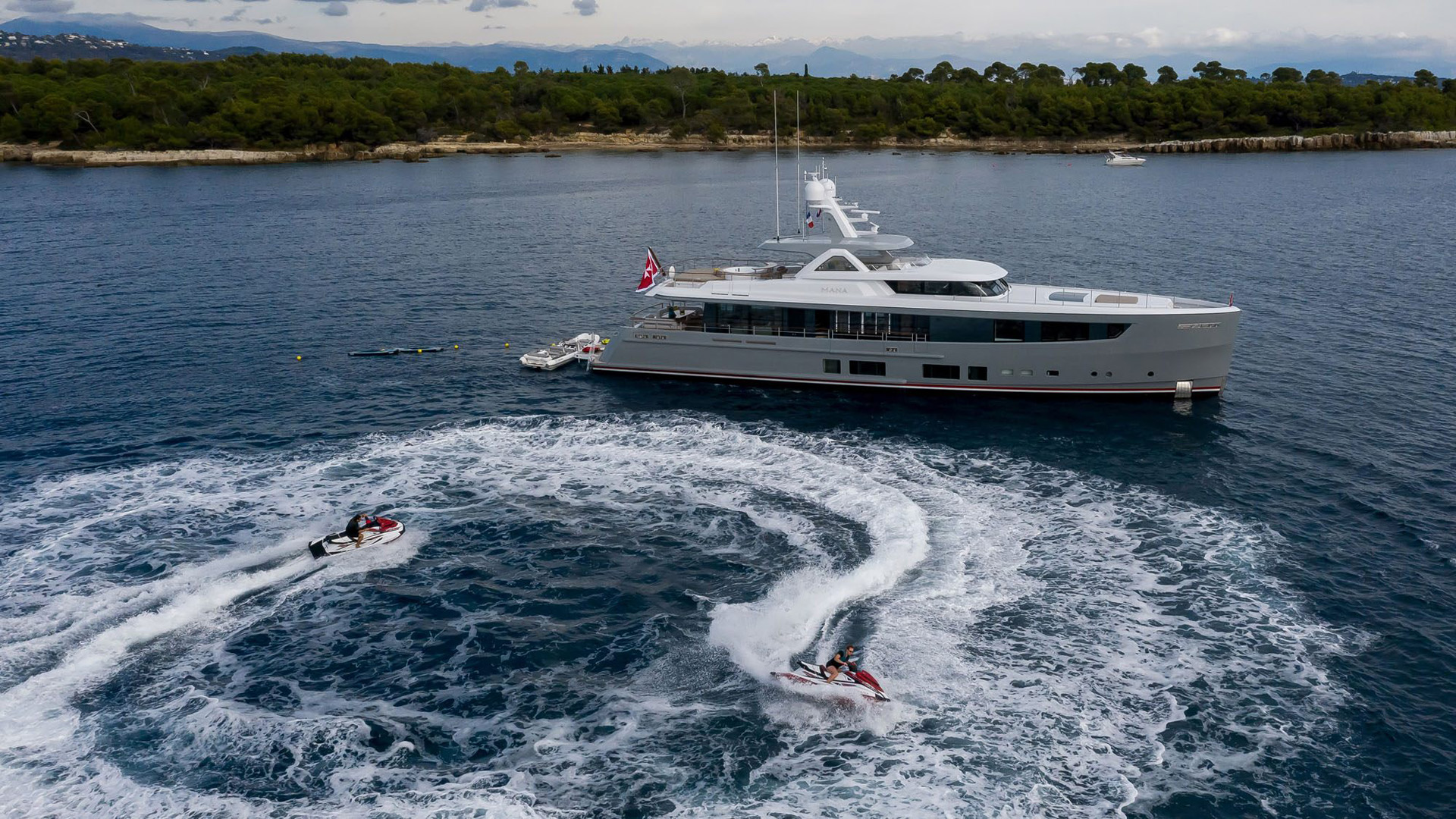

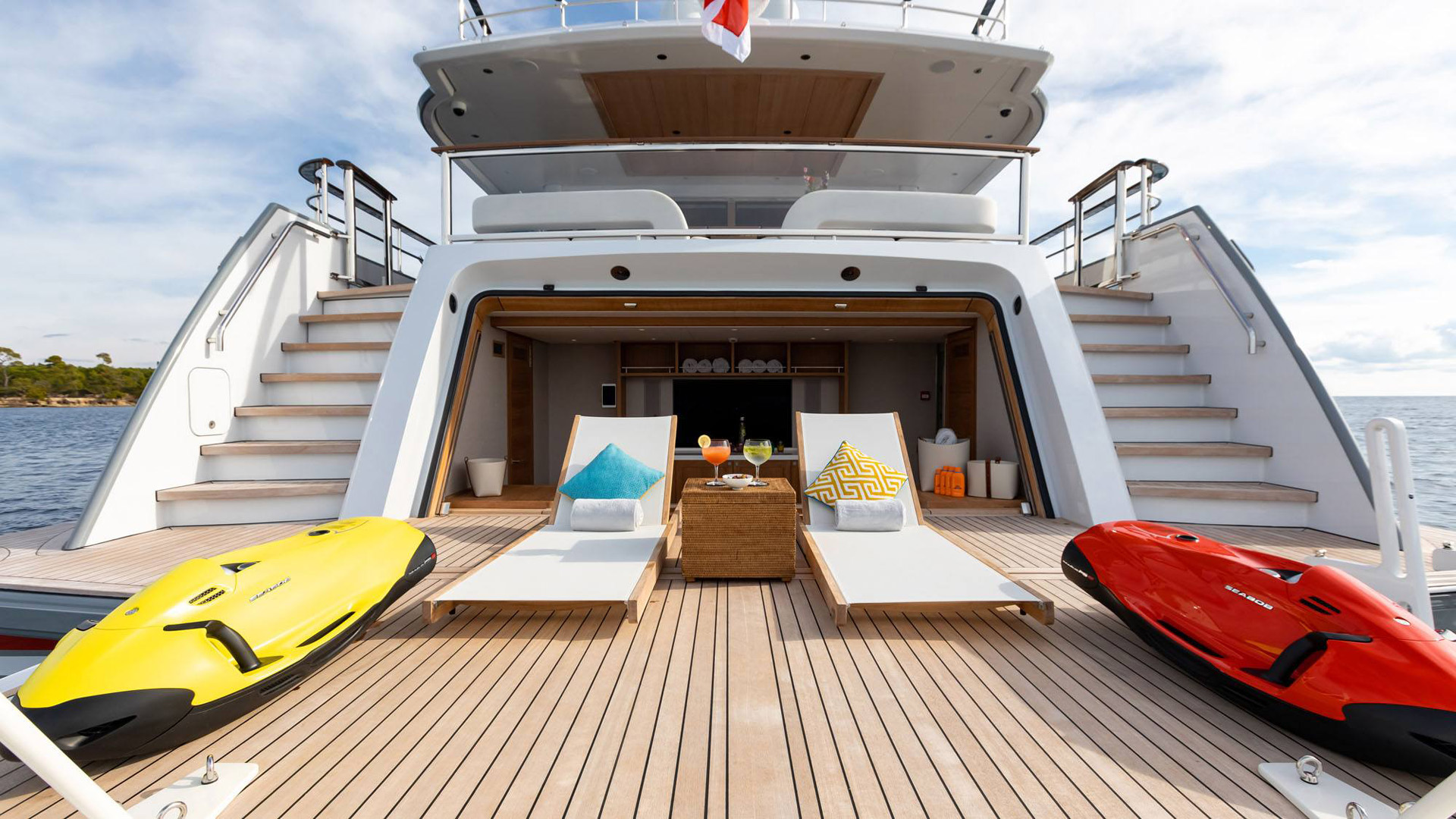

Tender / Toys:

Full options Williams 625 Dieseljet with 260HP
2x Yamaha FXHO
2x Seabob F5

Passarelle: Hydromar heavy duty, length of 5 meters

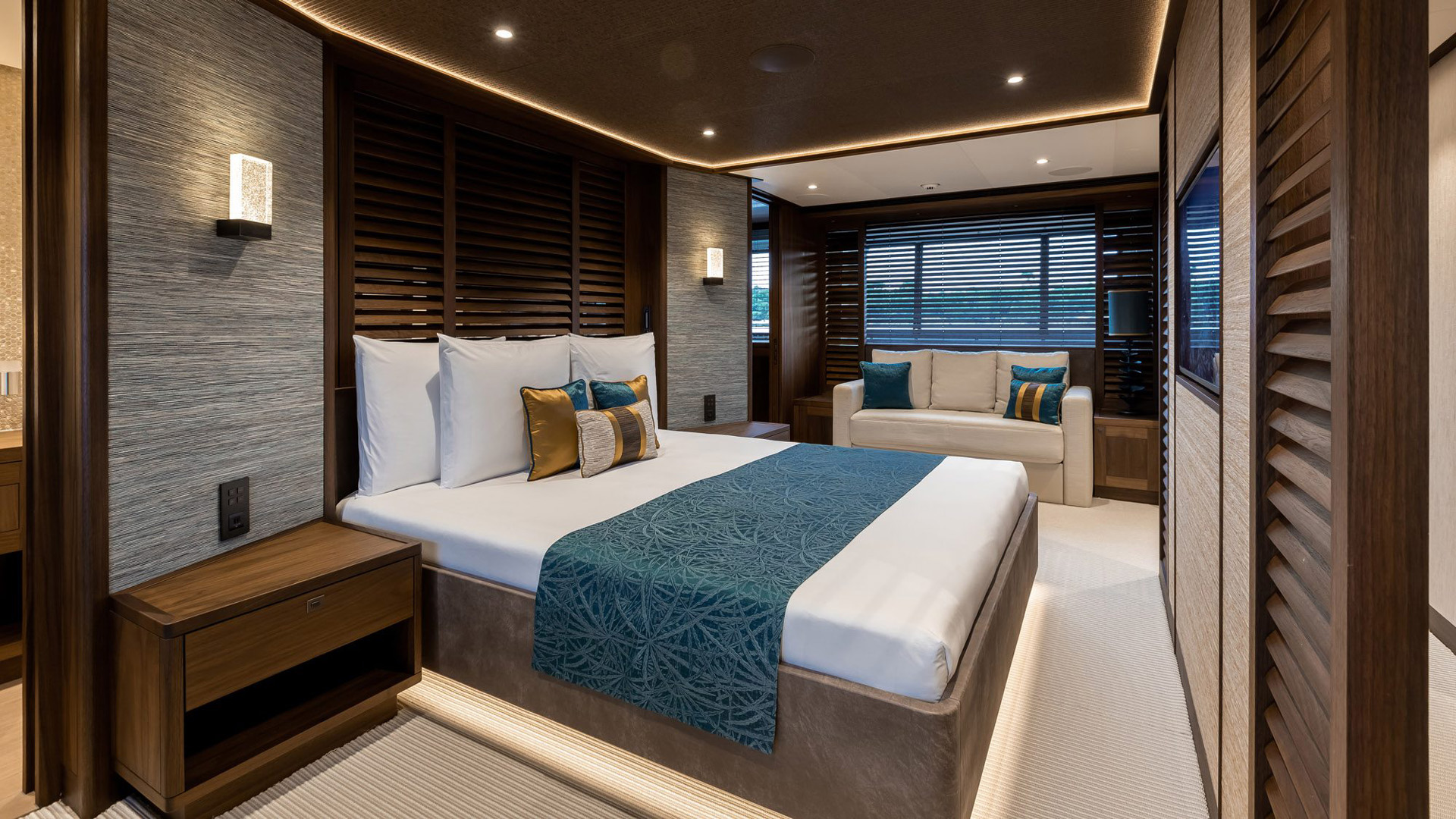

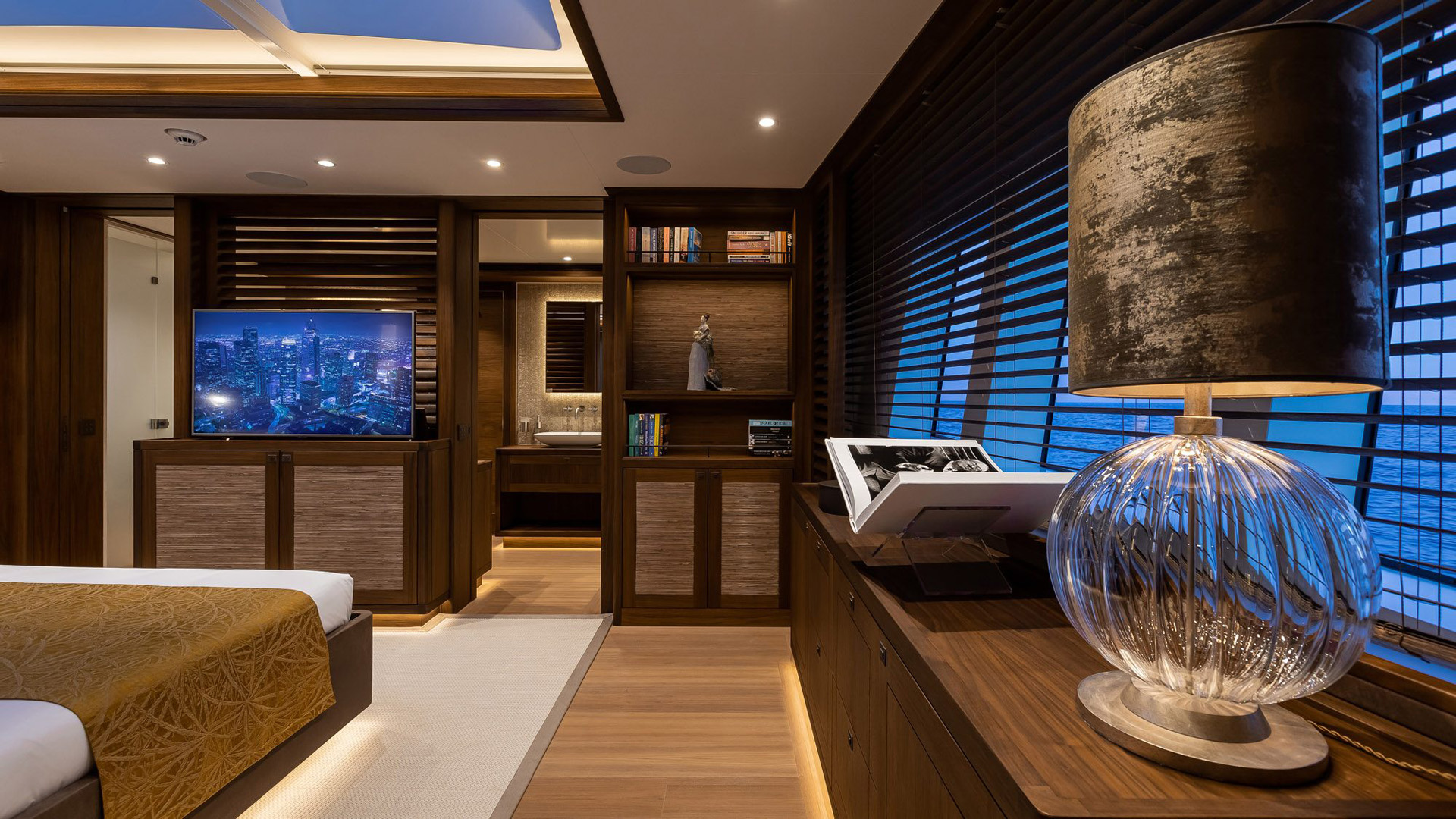

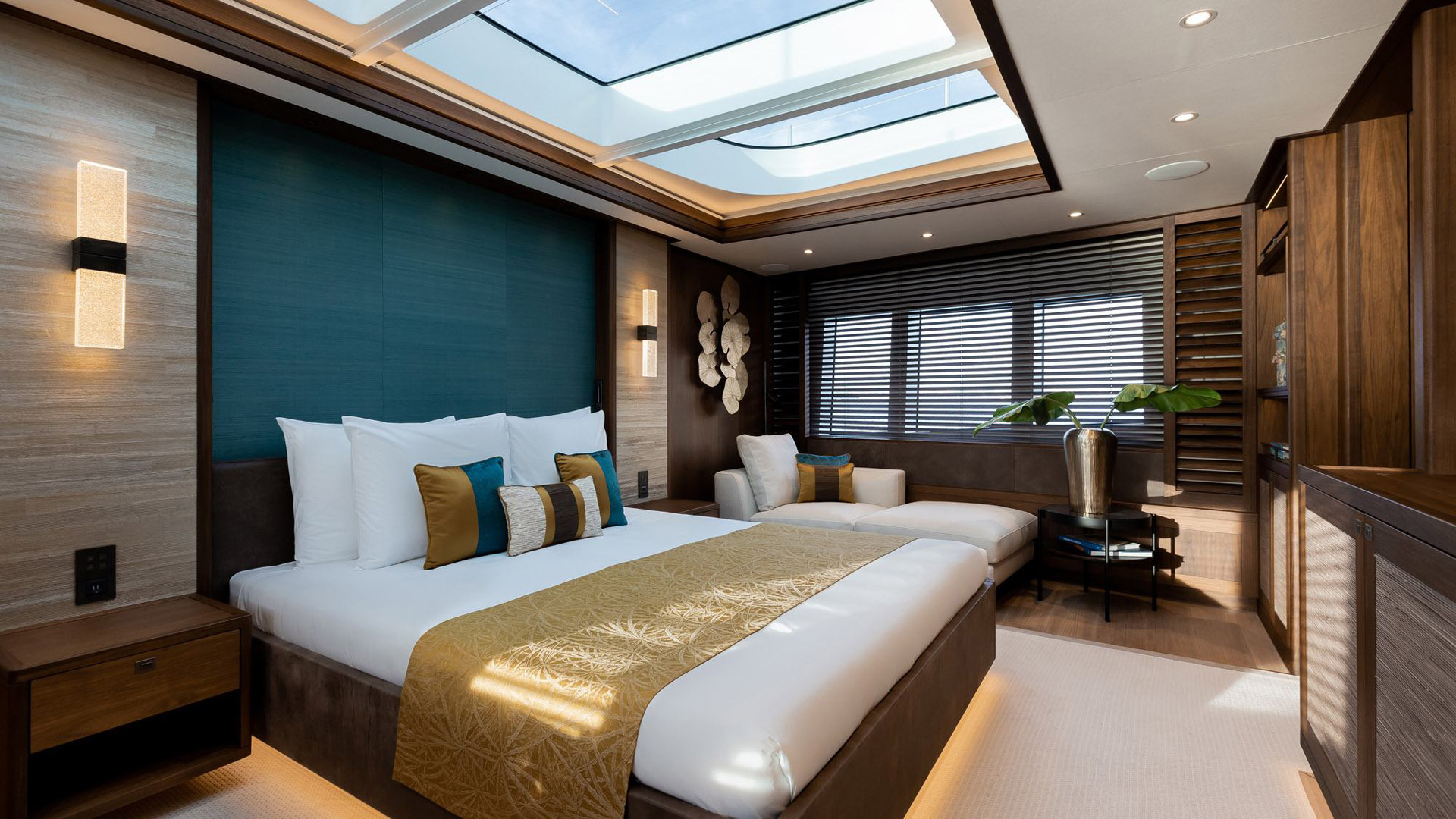

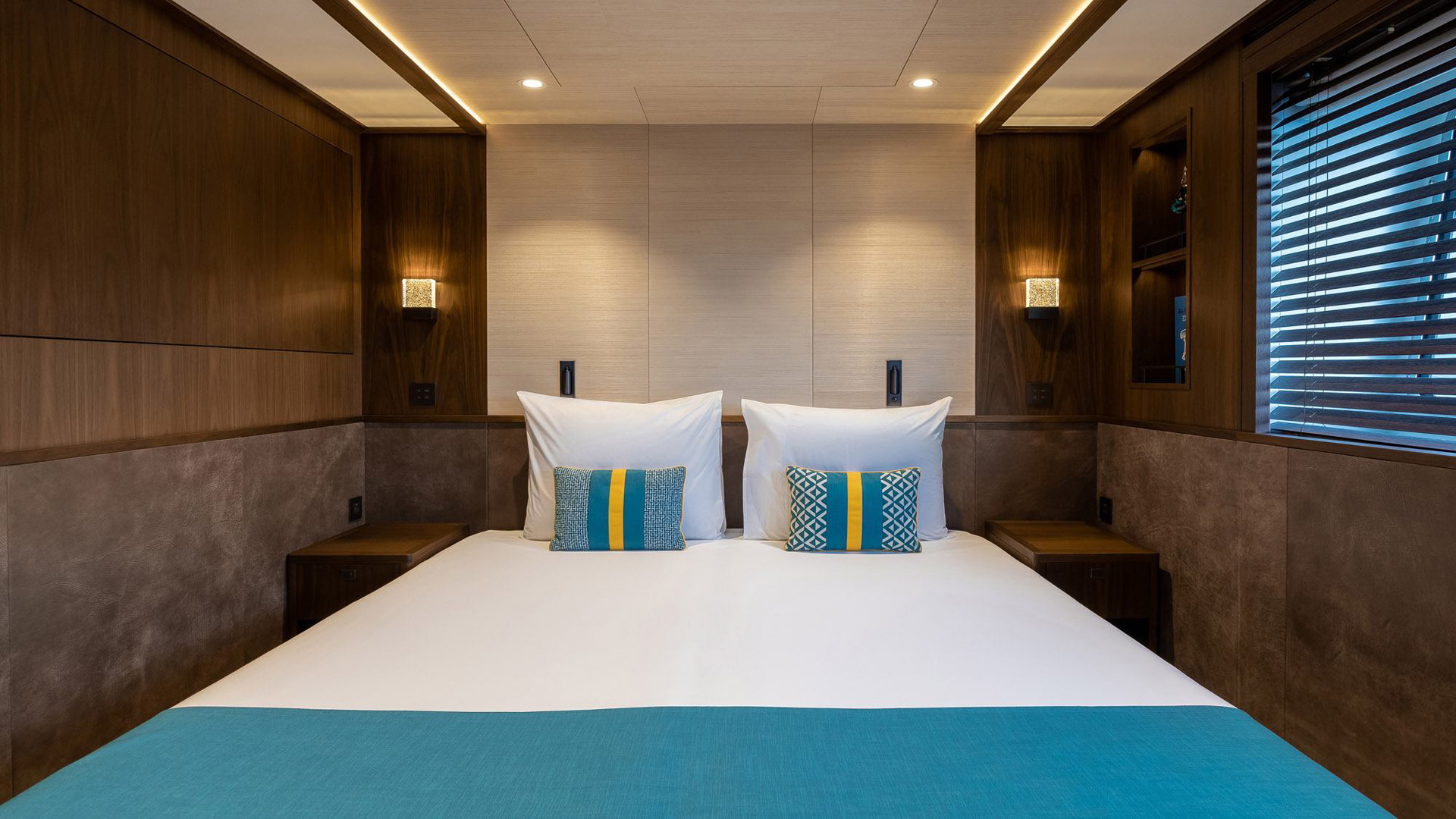

Cabins: 4 luxurious staterooms

Guests: 8+2

Crew: 6

TECHNICAL

Engine(s): 2x Caterpillar C18

Gearboxes: ZF 2.300, reduction ratio 4:1

Diesel capacity: 28.600 L (7,555 gal)

Fresh water capacity: 5.700 L (1,505 gal)

Grey water capacity: 2.600 L (687 gal)

Black water capacity: 1.800 L (475 gal)

Dirty oil tank: 600 L (158 gal)

Sludge tank: 600 L (158 gal)

Bow thruster:

Hydraulic 85 HP

Stern thruster:

Hydraulic 85 HP

Stabilizers:

Naiad Zero-Speed, Model 525, 2.33 M2

Anchor(s): 2x 167 KG SHHP, balanced, self-centering flukes, galvanised steel

Anchor chain(s): 2x 200 M, 16mm, galvanised U-2 (stud link)

Anchor winches: Hydraulic, type 6000

Watermaker: 2x 250 L / HOUR

Sewage system: Hamann waste water processing system

Fuel filter seperator: CC Jensen 400 L / HOUR

ELECTRICAL

Generator(s): 2x 80kWe, 50Hz 1500rpm

Electrical system: 230/400V 50Hz

Shore power convertor(s):

Marpower SPC-II Hybrid 80kW

Shore power connection: Three phase

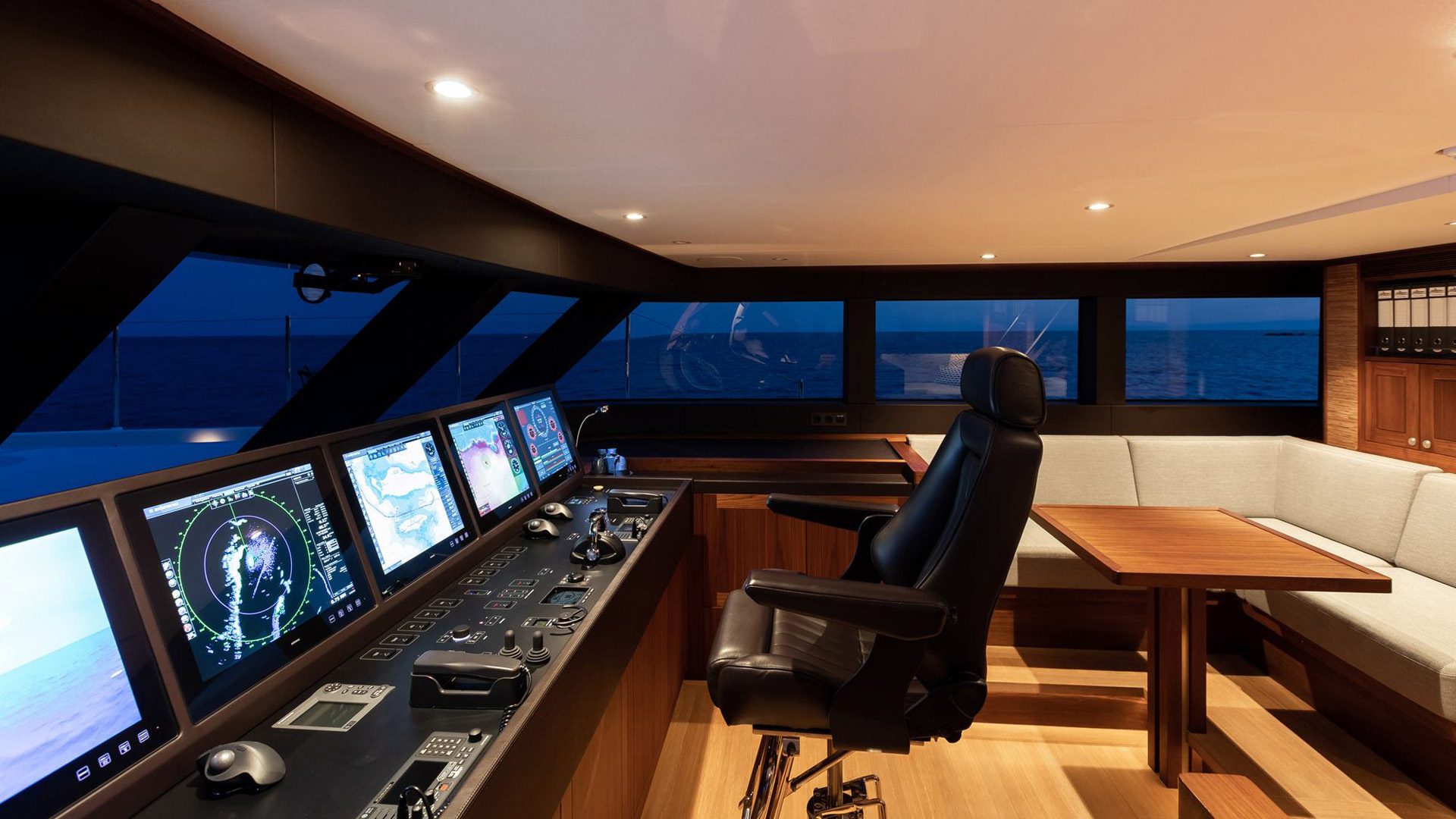

Navigation:

Böning (5-screens)
Furuno

Heating system: Kabola HR500

Airconditioning: Heinen & Hopman 220.000 BTU

Boiler(s): 2x 250 L

EXTERIOR

Options / other:

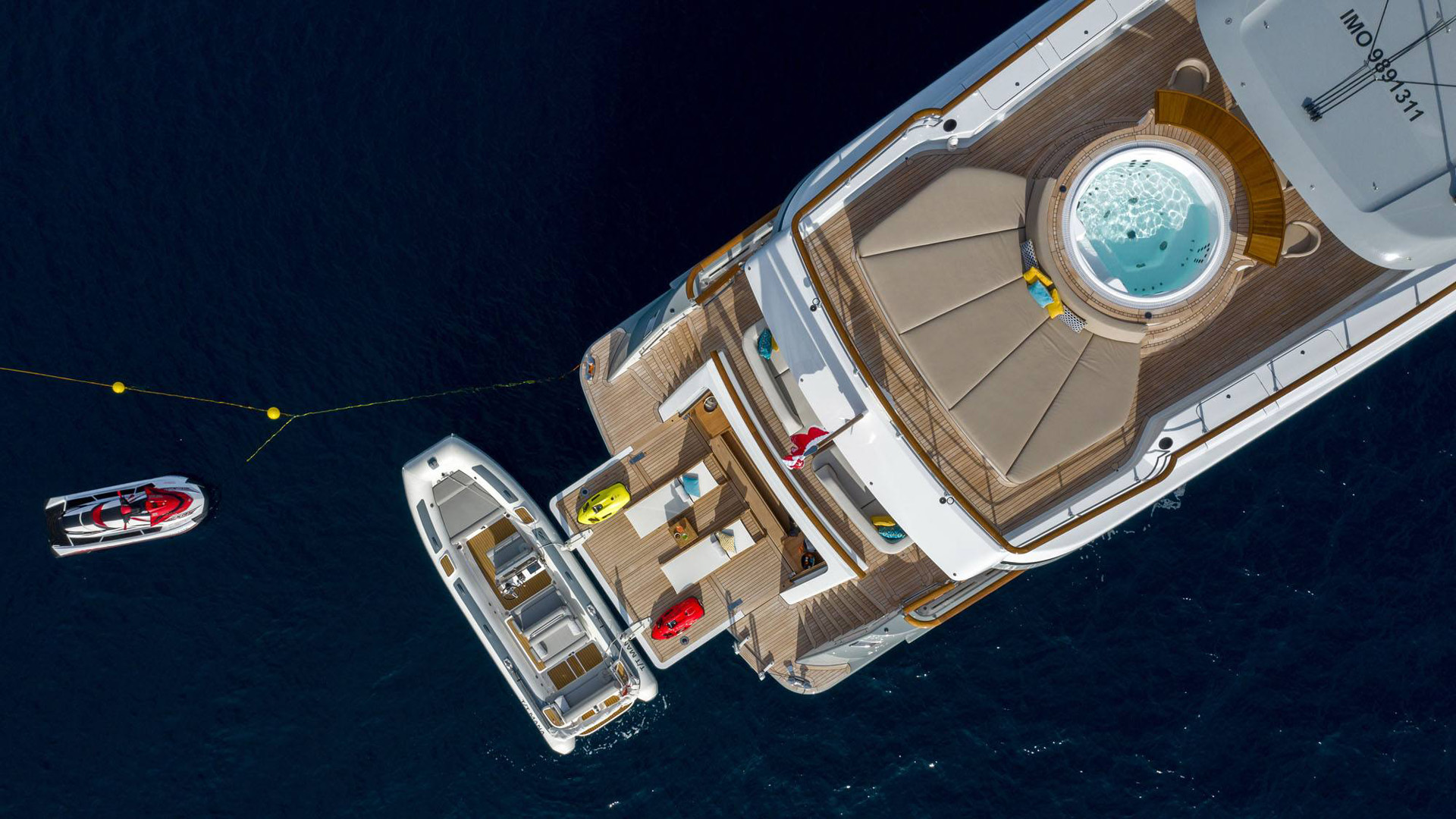

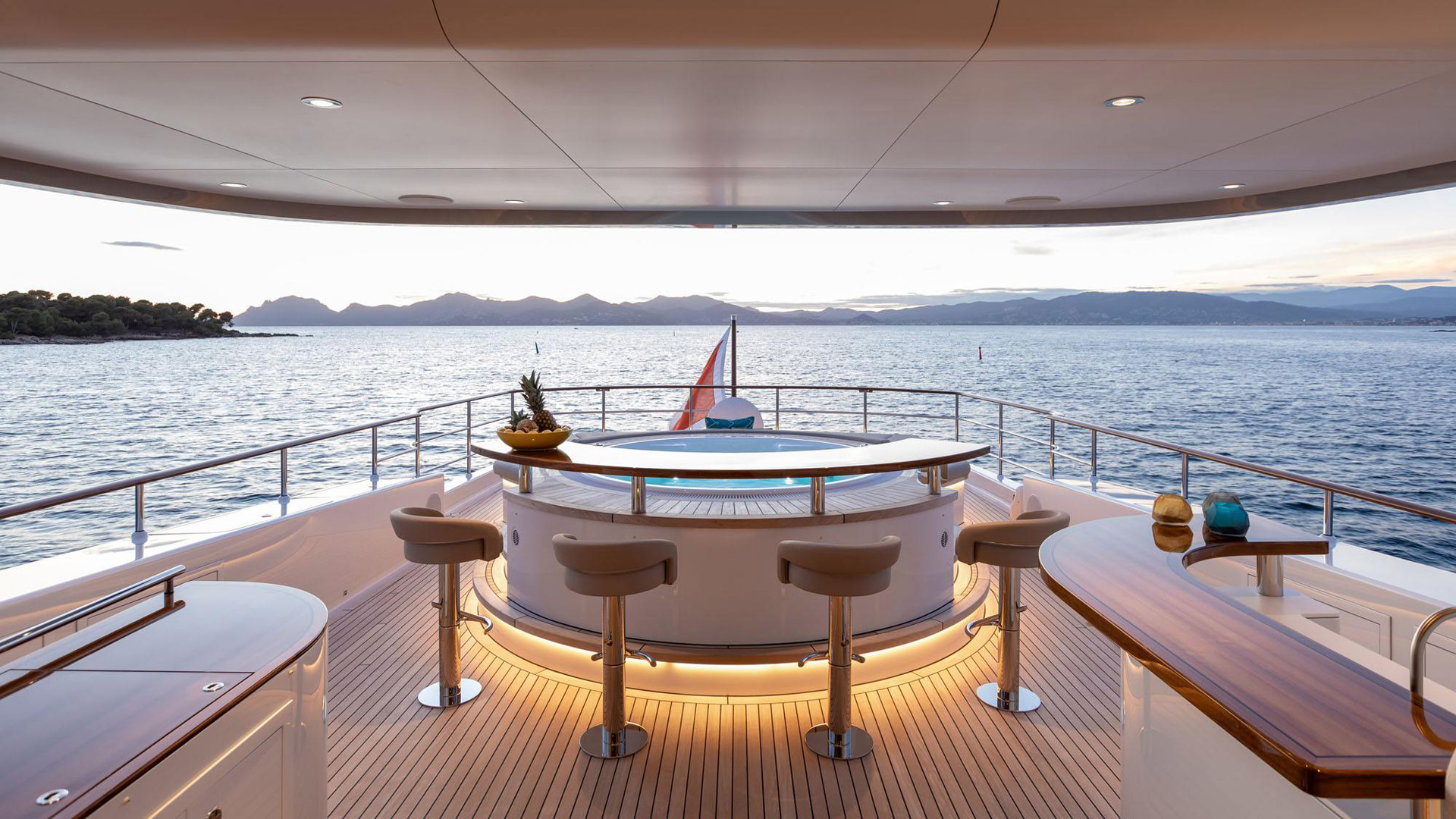

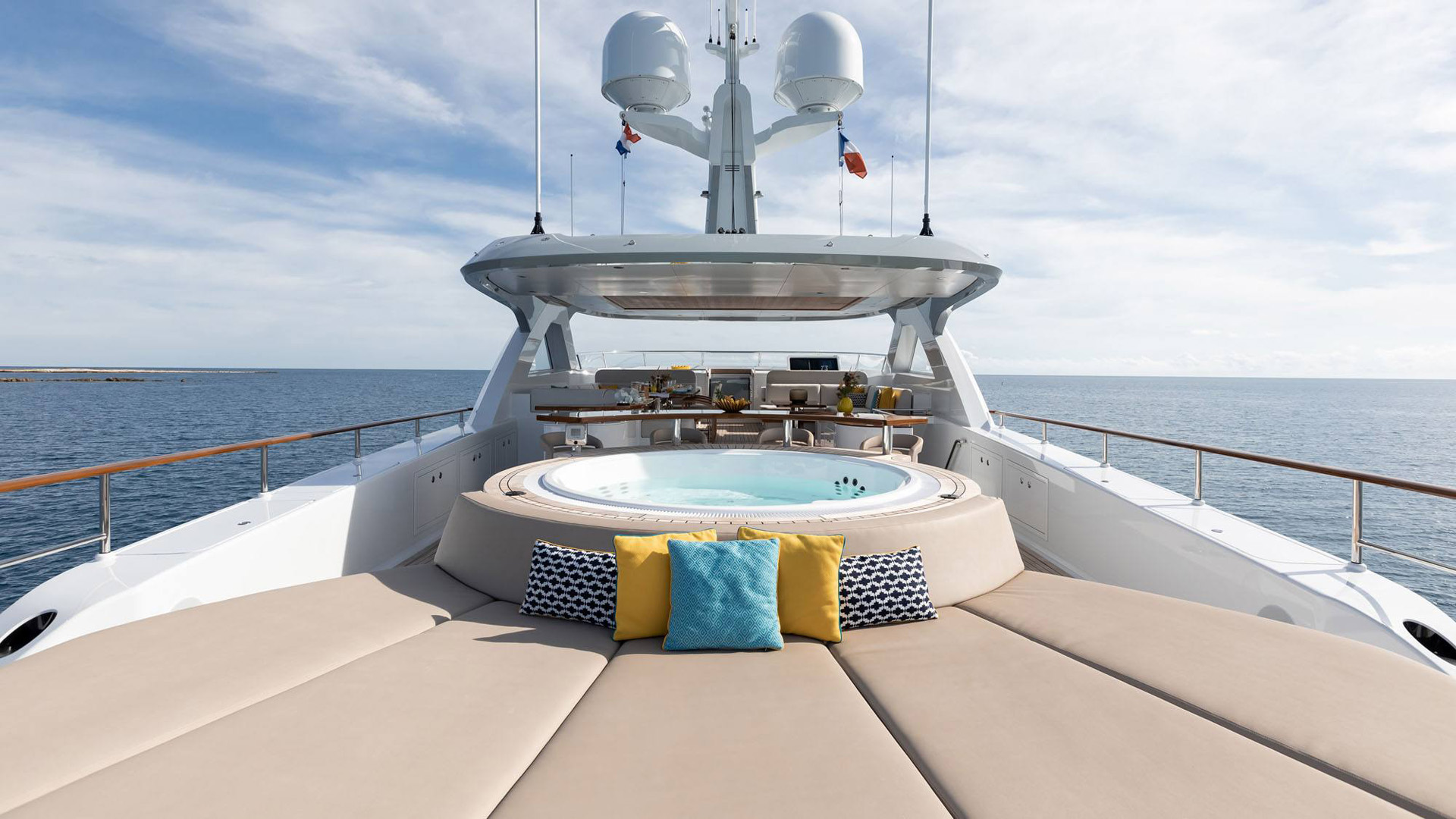

7-persons Spa-pool 2,25M diameter
4x 8-persons SOLAS life rafts

INTERIOR

Galley equipment:

6-zone induction + steam oven + combi oven + quooker + 2x dishwasher + icemaker + winecooler + extensive refrigerators + freezer

Landry equipment:

2x Miele Professional washer
2x Miele Professional dryer

Audio / video:

VSAT antenna Intellian type V80G
Satellite TV system Intellian type 16
Camera system Five x AHD colour

Built for Generations, Designed for Moments

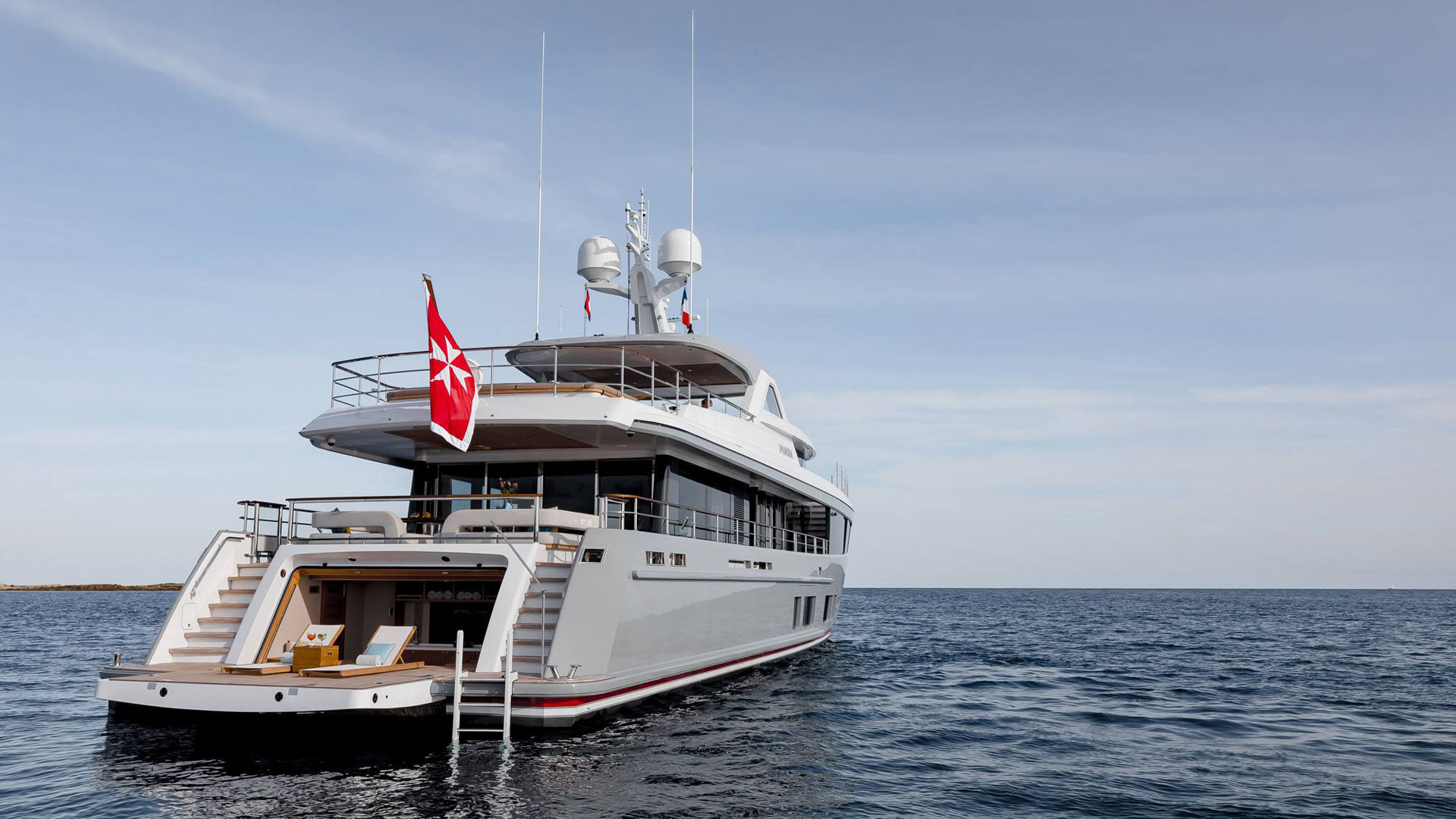

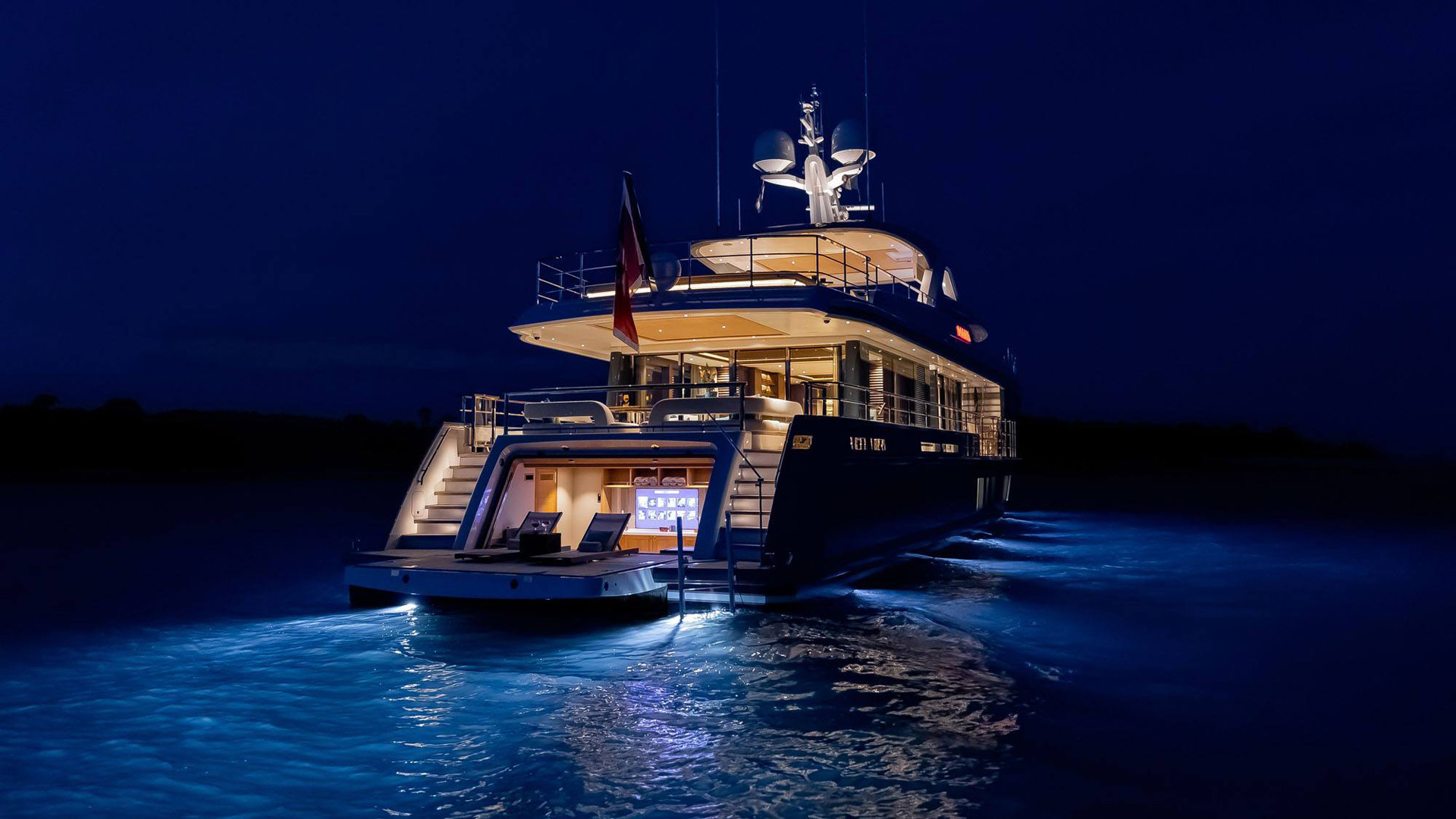

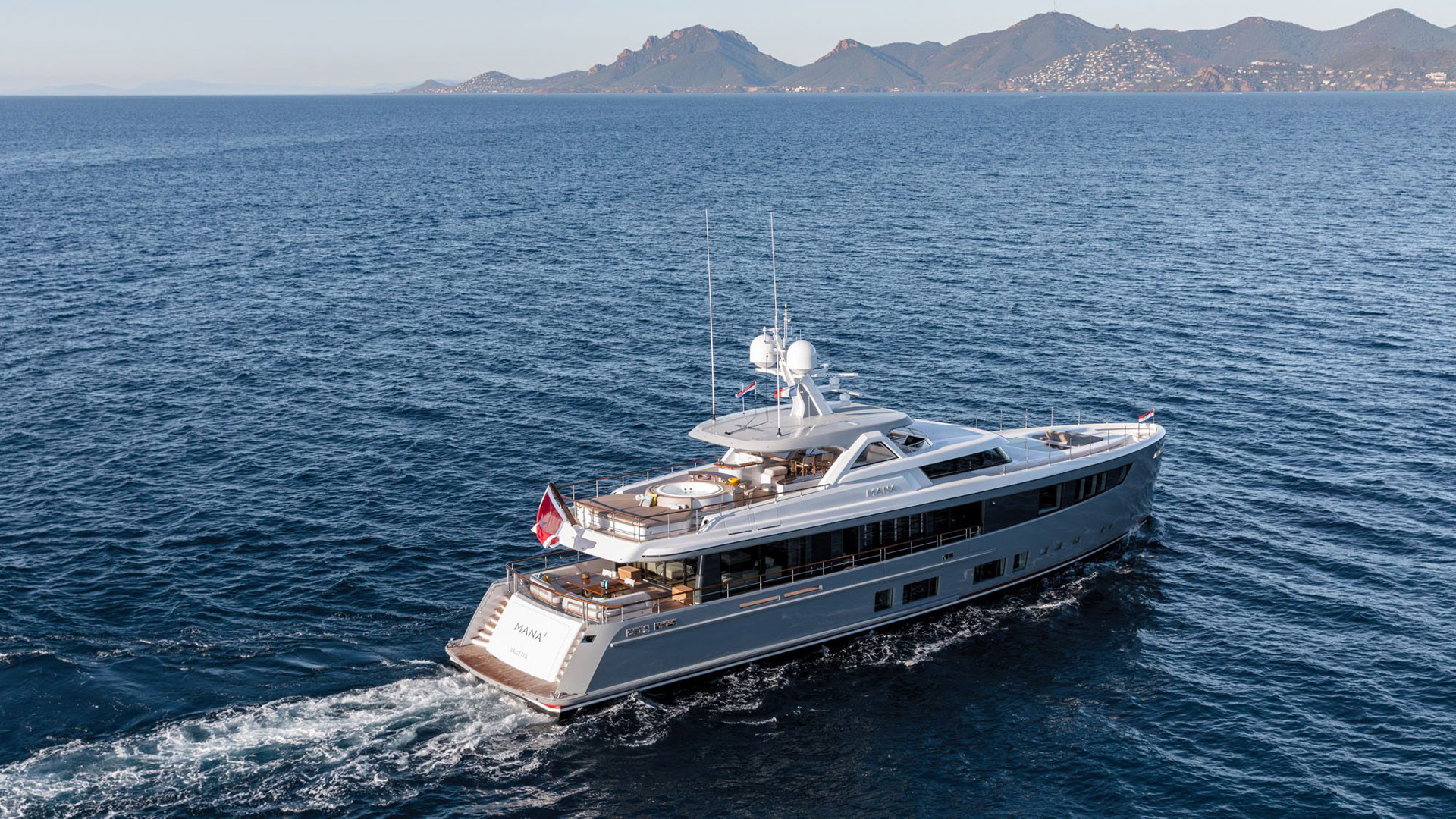

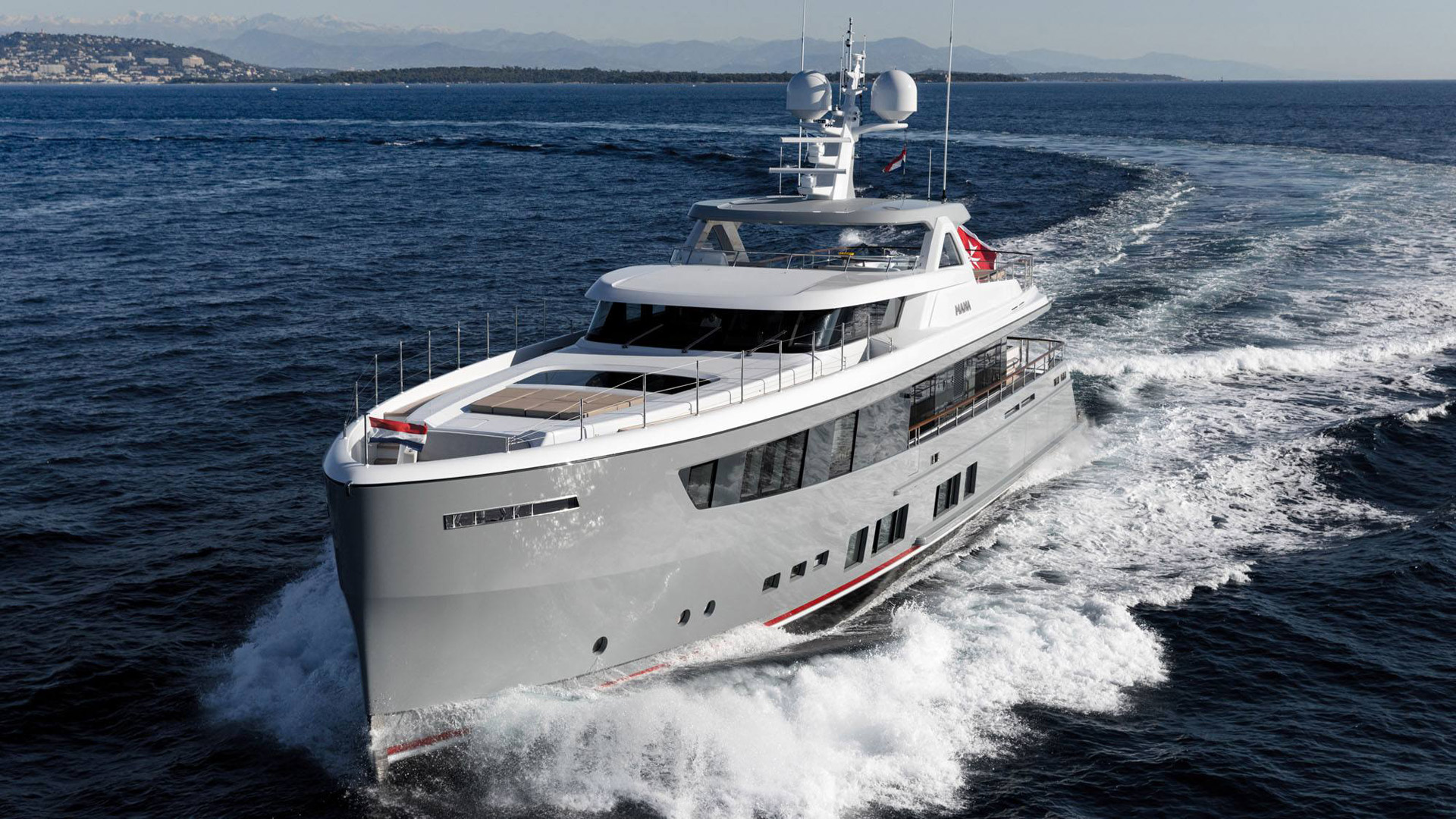

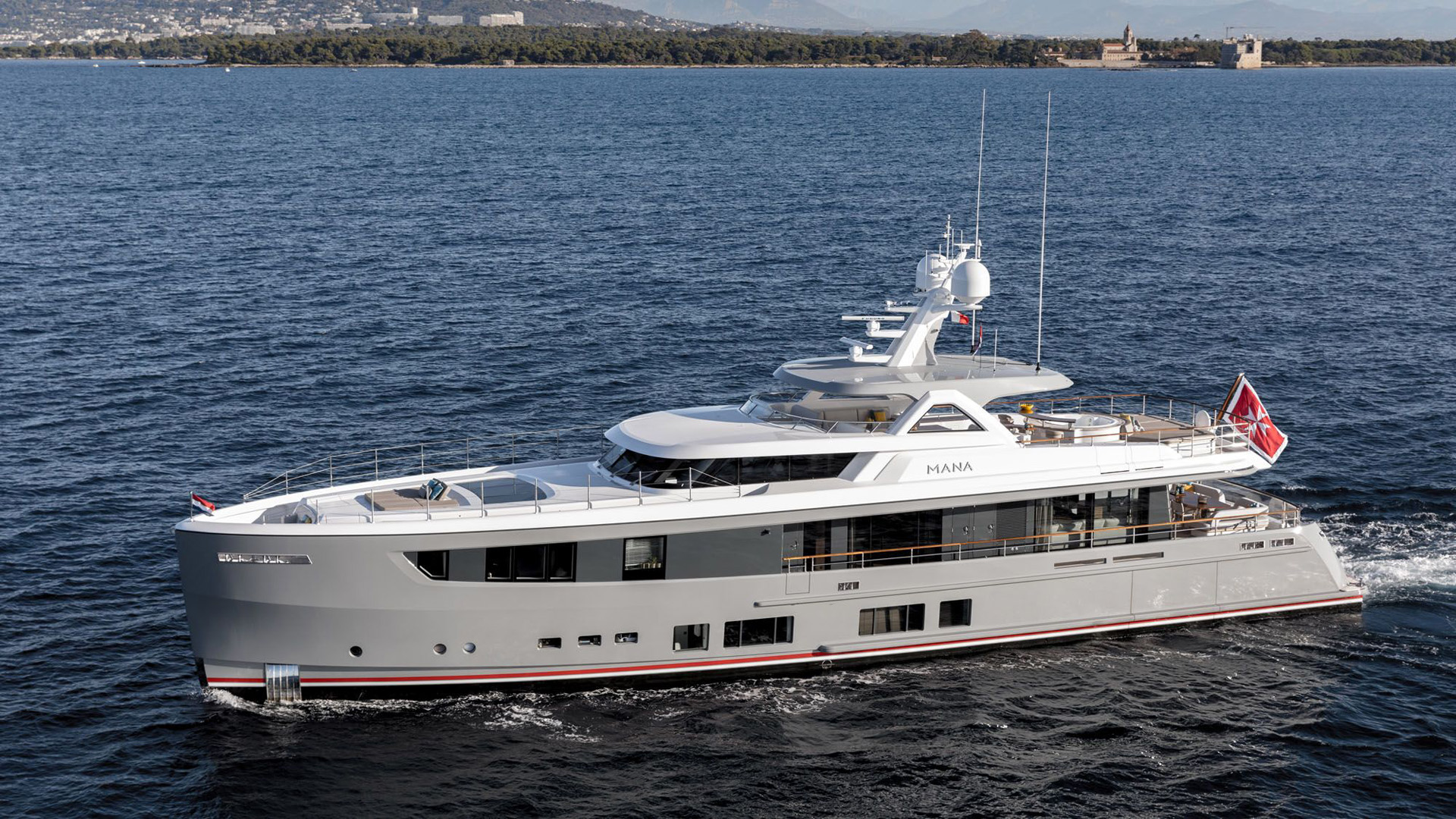

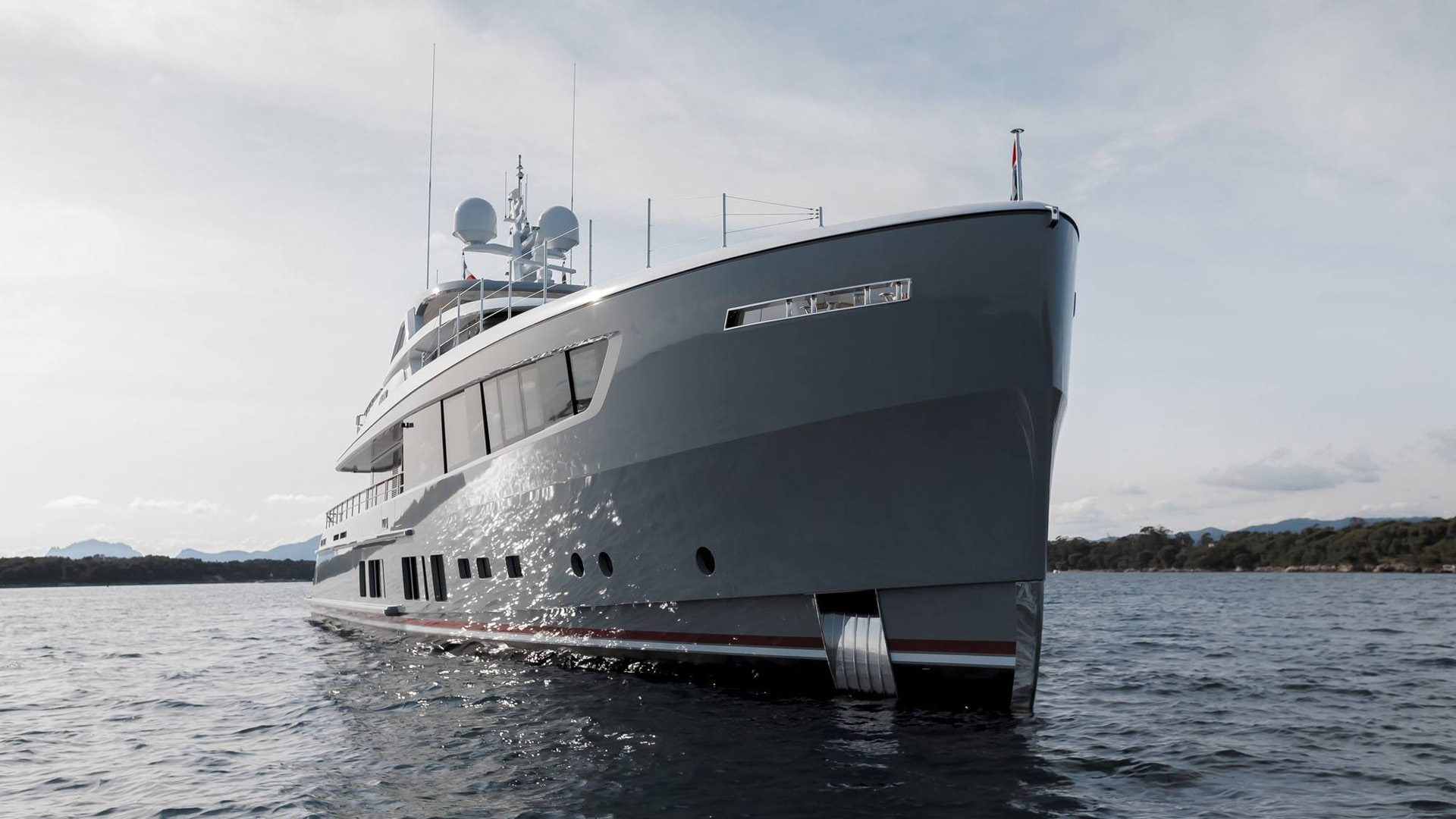

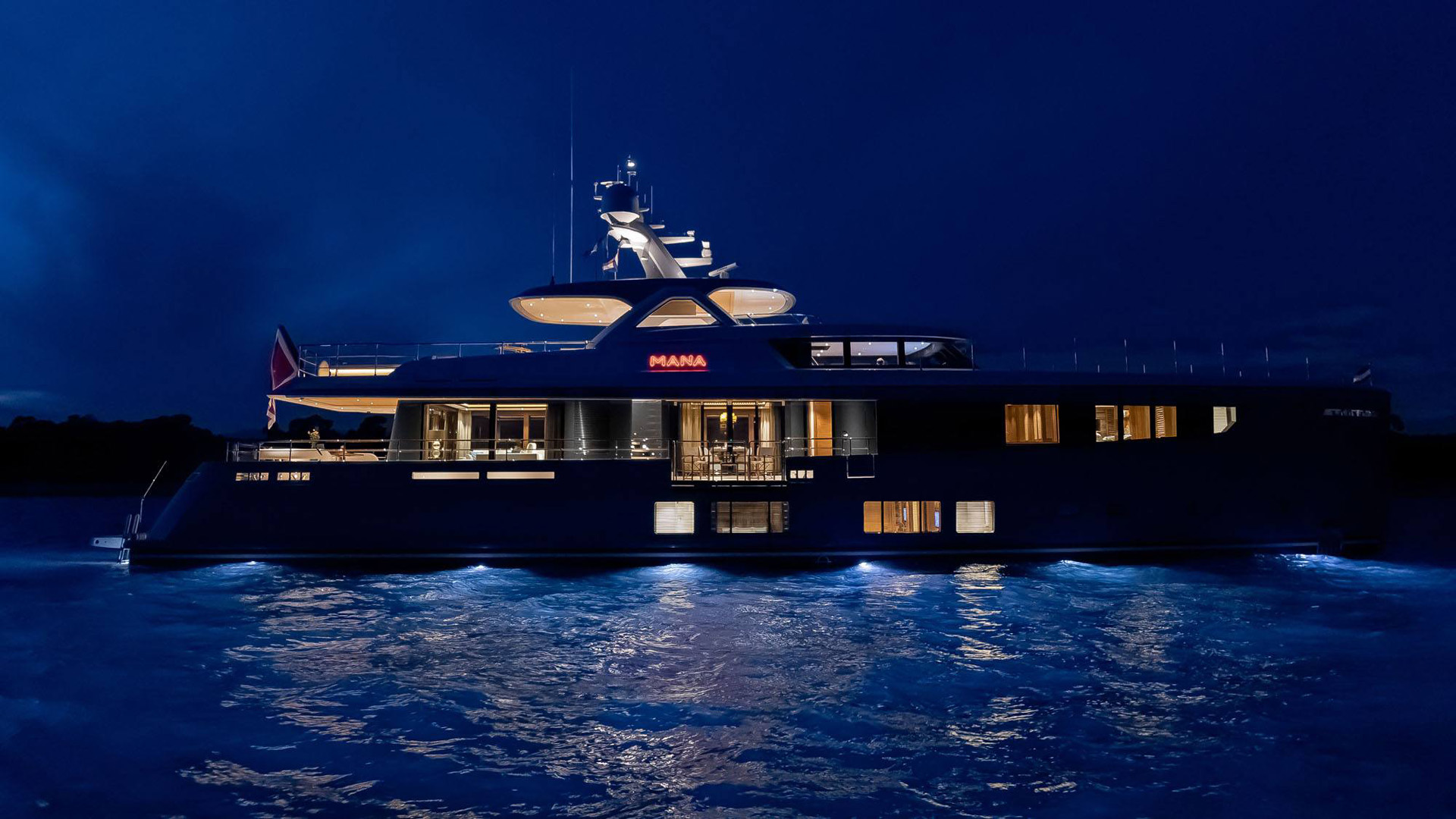

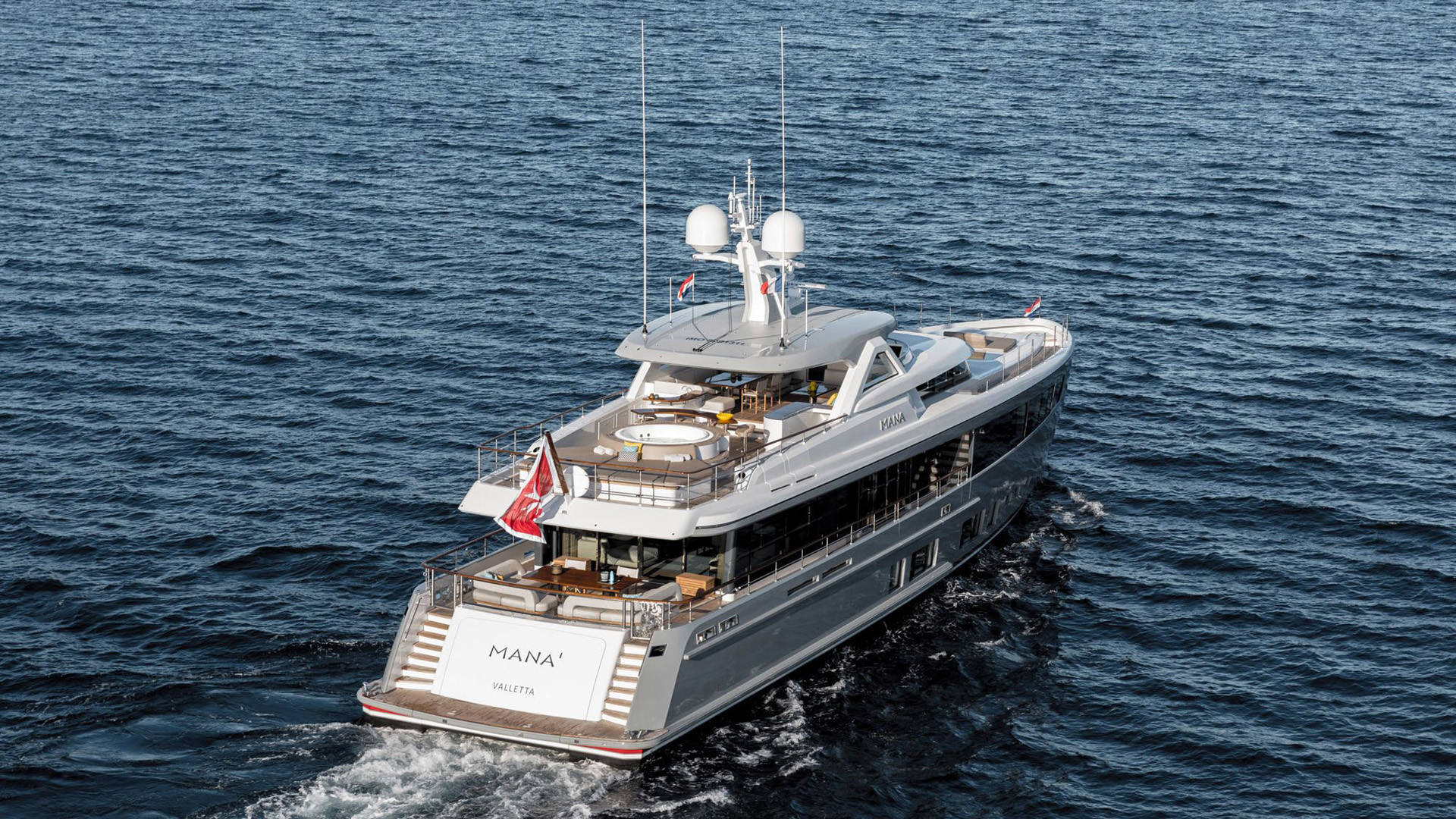

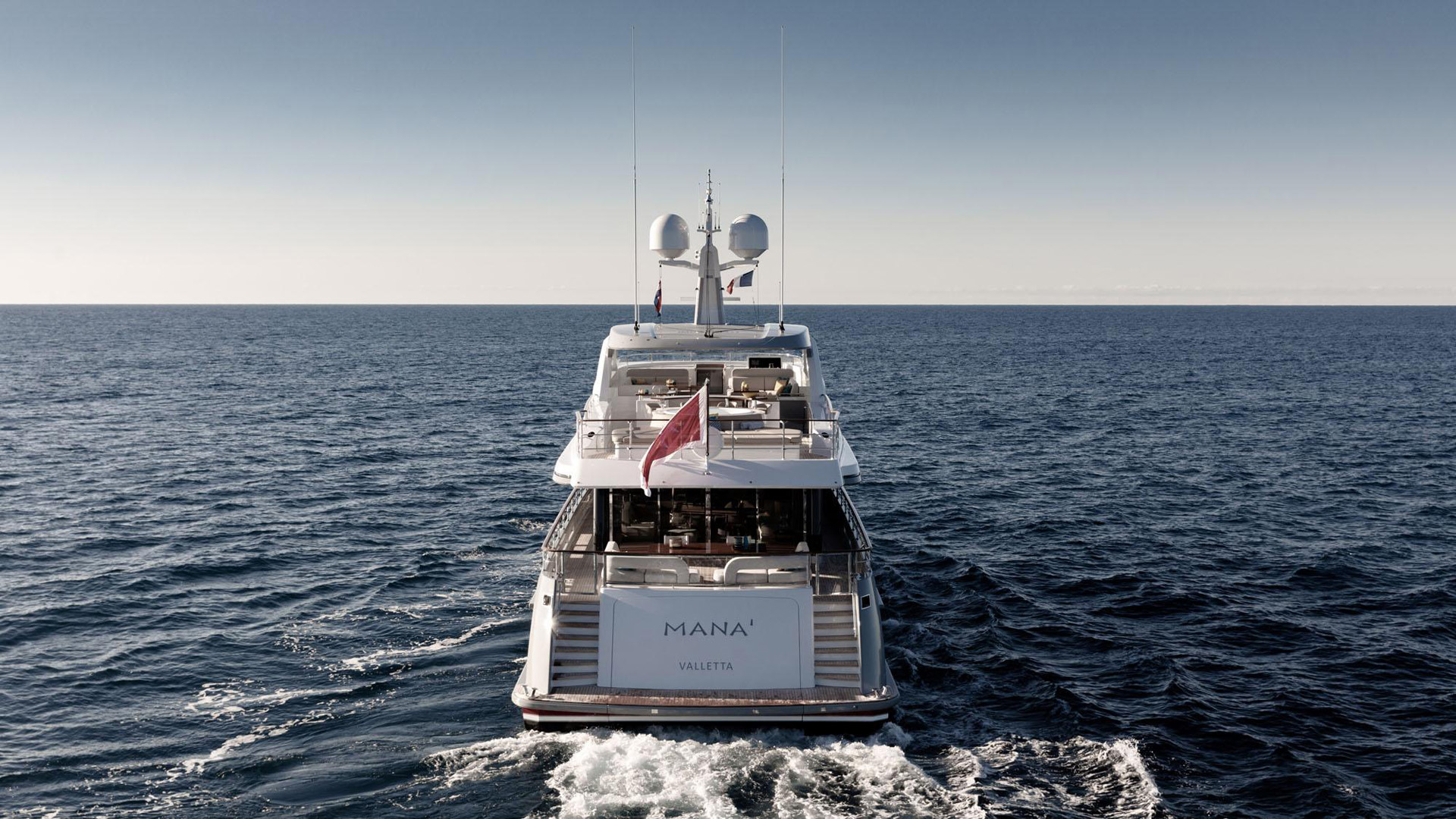

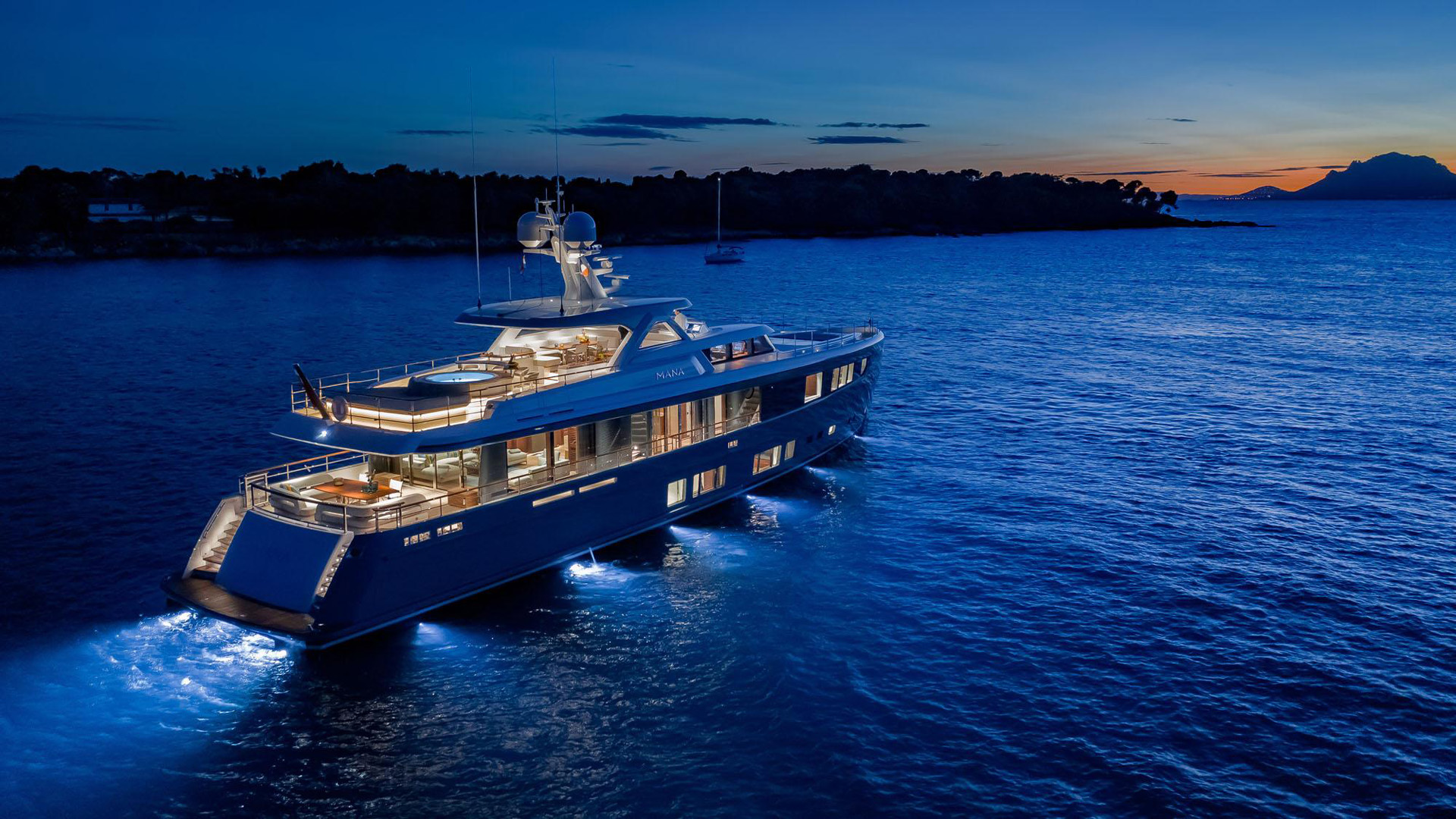

The 2020 Mulder ThirtySix – MANA I is a fine example of Mulder Shipyard’s dedication to timeless design and superior craftsmanship. Measuring 36.00 M, this yacht embodies the quality and attention to detail that have defined Mulder since its founding in 1938.

With a unique history and carefully crafted design, she remains a valued part of our fleet. Built to meet the specific wishes of her original owner, she reflects the individuality and bespoke nature that characterize every Mulder yacht.

If you have any additional information, photographs, or stories about this yacht, we’d love to hear from you to further celebrate its legacy.
